Project Parameter
Bridge type 07A
Basic structural form Casting bridge shell
Rated load (kg) 7000
The form of driving brake Wet brake
Hydraulic interface of driving brake M14×1.5
Driving Braring Torque (Nm) @5.4MPa 14600
Parking brake form Wet brake
Parking brake hydraulic interface M14×1.5
Parking brake torque (Nm) (4MPa release braking) 10000

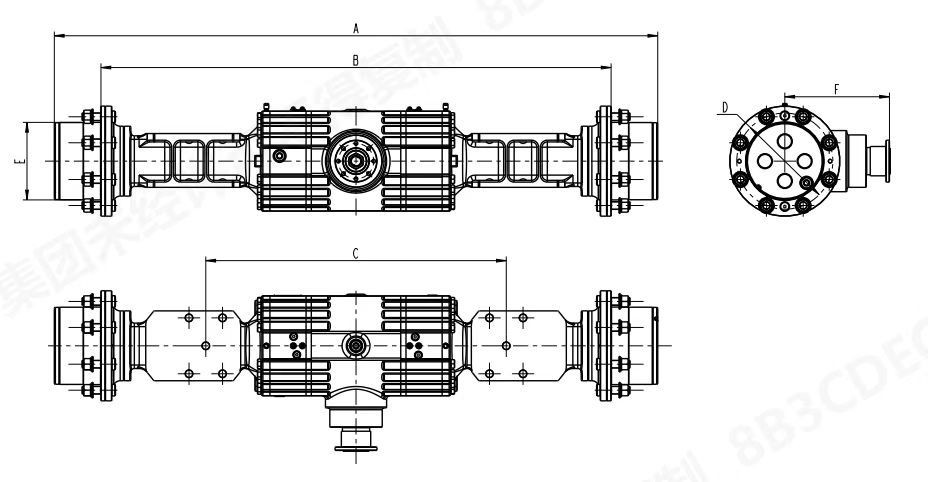

A: Maximum external width (mm) 1727
B: rim installation distance (mm) 1460
C: Hanging installation distance (mm) 860
Main deceleration ratio 2.385
Wheel edge speed ratio 6
Rated output torque (Nm) 11500
D: Round diameter of rim bolt (mm) 275
E: rim stop (mm) 222
Rim bolt 2×8×M22×1.5
F: The central distance between the input flange and the semi-axis rotation 297.5

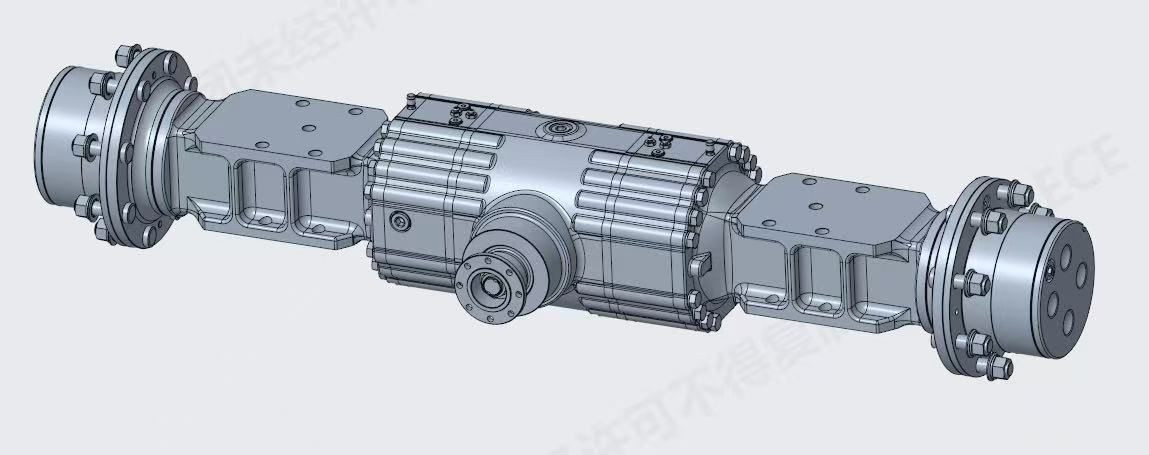

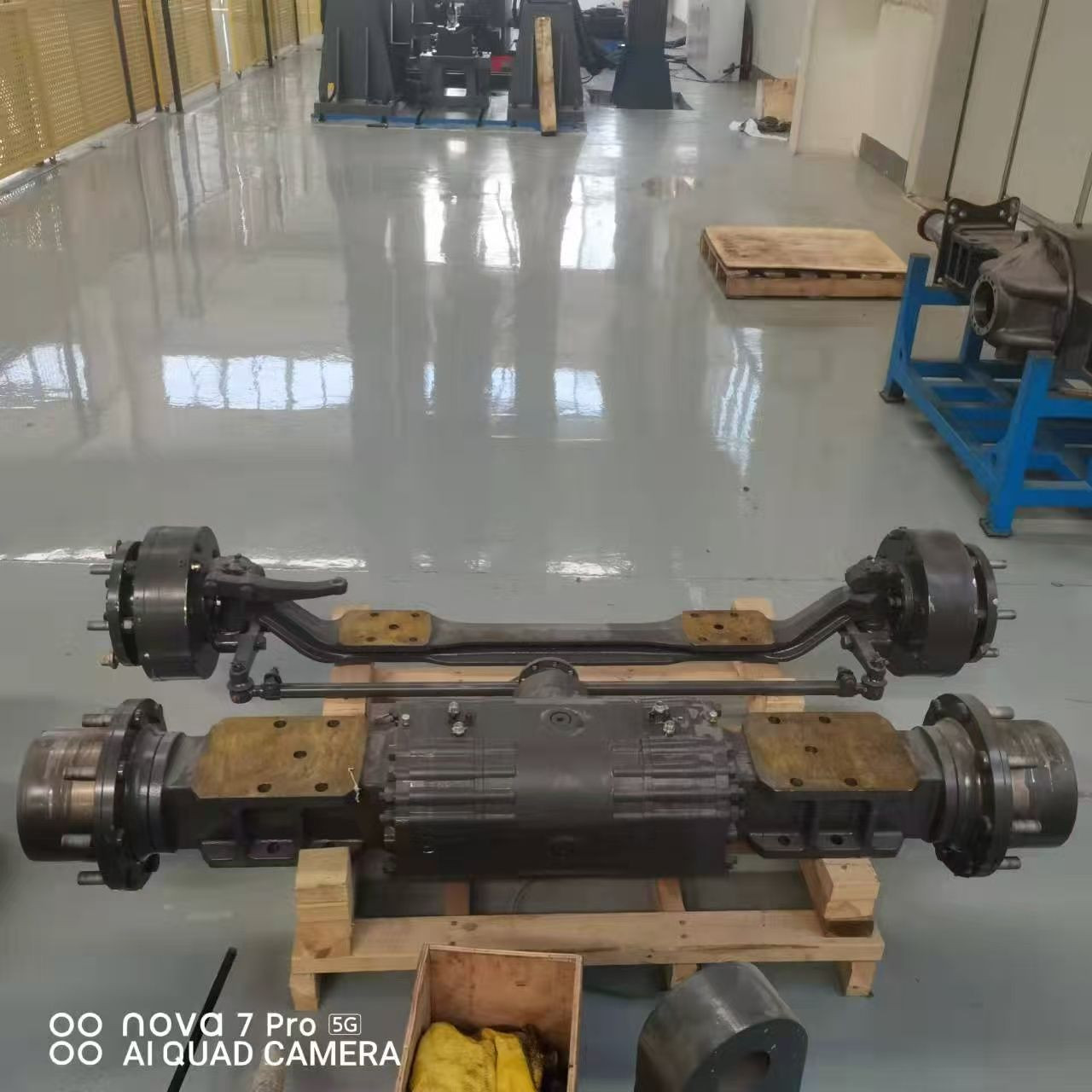

The 07A axle is a drive axle with a wet brake. As an underground operation vehicle, the whole bridge has passed the transmission test and the bridge shell fatigue test, which has high safety and reliability.
The whole bridge and the rigid suspension of the frame can meet the needs of underground transportation in combination with 03A. The whole bridge structure absorbs the advantages and disadvantages of domestic and foreign industry benchmark products, learns from the strengths and makes up for the shortcomings, and has high stability and service life. This product can effectively eliminate the dependence of relevant domestic host manufacturers on foreign products.
