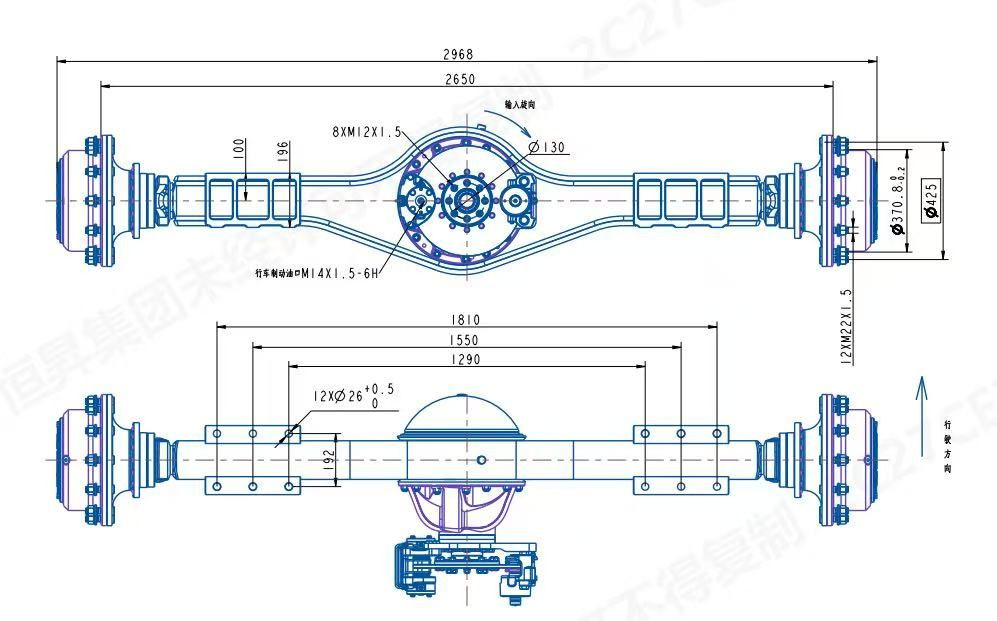

16A2 front drive bridge product configuration parameters
Project Parameter
Bridge type 16A2
Basic structural form High-strength plate group welding
Rated load (kg) 16000
Brake form Driving brake 560000NM + parking brake 540000NM
Maximum external width (mm) 2968*755*540
Rim installation distance (mm) 2650
Wheelbase range (mm) 2460~2610
Installation plate spacing (mm) 1550
Tire form (mm) 650~800
Transmission speed ratio 22.5
Output torque 90000NM
Input flange connection DIN150 8*M12
Round diameter of rim bolt (mm) Ø425
Rim stop (mm) Ø370.8
Rim bolt 12XM22X1.5
Brake interface M14X1.5
The bridge is an alternative product for the imported bridge of the corn machine. The bridge shell adopts a plate group welding structure, and the software simulates the working condition strength calculation design. The structural size is reasonable, the weight is light, and it is safe and reliable. The cost has an obvious advantage and can directly replace the imported bridge in the original vehicle.
