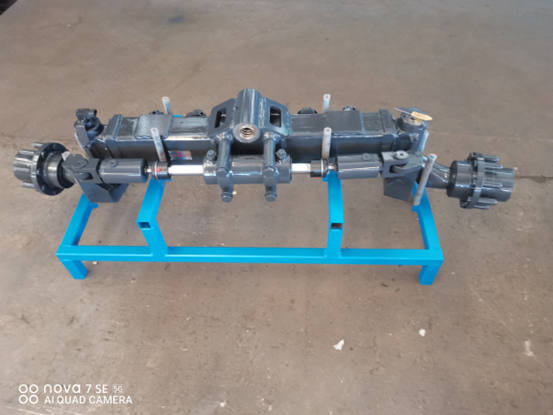

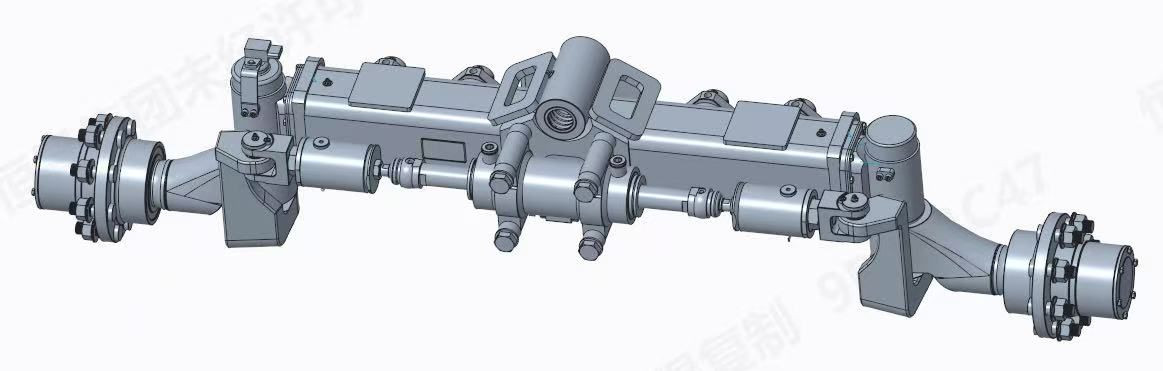

04A2 Steering Bridge Product Configuration Parameters
Project Parameter
Bridge type 04A2
Basic structural form Square pipe bridge shell
Rated load (kg) 3500
Maximum external width (mm) 1741/2021
Rim installation distance (mm) 1,520/1,800
Main pin center distance (mm) 1015/1295
Wheelbase (mm) 1,520/1,800
Connection form (mm) Join with a hinge
Inner angle (°) 37
Outer angle (°) 30
Inclination angle of the main pin (°) Zero
Wheel tilt angle (°) Zero
Front bundle (mm) Zero to two
Round diameter of rim bolt (mm) Ø162
Rim stop (mm) Ø120
Rim bolt 2X8XM20X1.5
Steering cylinder form Double pole and double out
Steering cylinder interface 2XM18X1.5
Working pressure of the steering cylinder (MPa) 0 to 15 MPa
Installation distance of steering cylinder (mm) 130/150
The 04A2 bridge is a variable wheelbase steering axle. The whole bridge is hinged and connected to the frame, which can meet the two wheelbases and steering of 1520mm and 1800mm. It is used for the rear axle of the 2-line cotton harvester vehicle.
