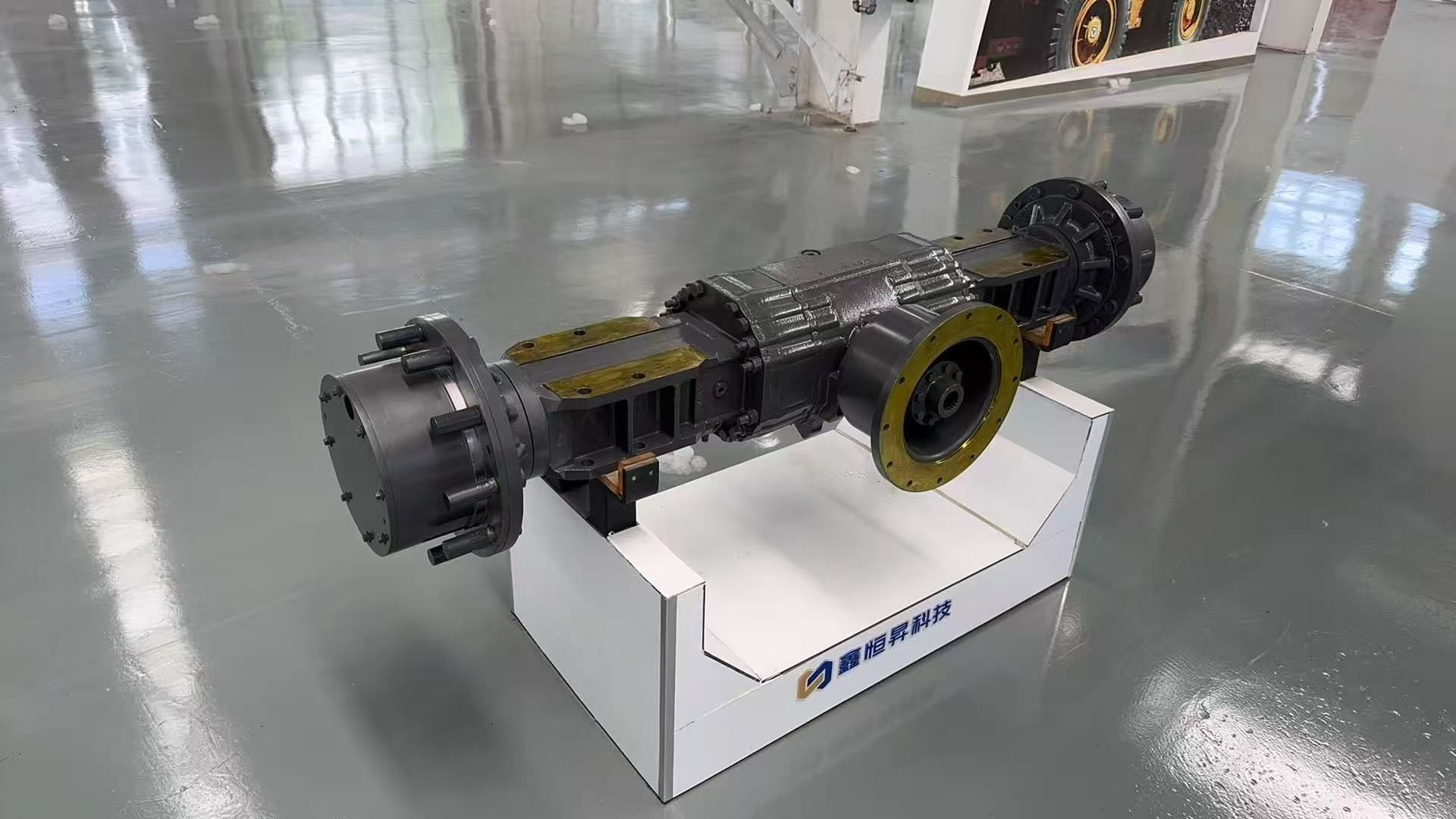

13F rear drive bridge product configuration parameters
Project Parameter
Bridge type 13F
Basic structural form Segmented casting structure
Rated load (kg) 13000
Driving control torque (Nm) 31000
Parking brake torque (Nm) 16000
Length (mm) 1808
Rim installation distance (mm) 1530
Installation plate spacing (mm) 1060
Transmission speed ratio 16.5
Output torque 16,000NM
Round diameter of rim bolt (mm) Ø335
Rim bolt 20XM22X1.5
Brake interface M14X1.5

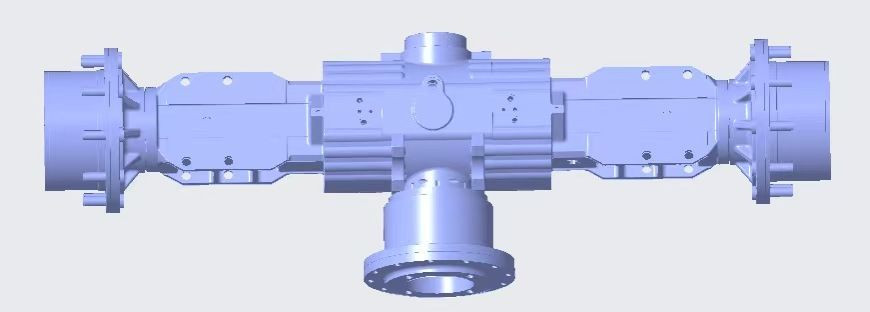

Three-dimensional stereoscopic diagram of 13F drive bridge
The 13F bridge is a driving bridge. The bridge body is cast in sections and has a relatively large cross-section and strong rigidity. It is equipped with a parking integrated wet brake. It meets the explosion-proof requirements of underground operating vehicles and has high safety and reliability.
