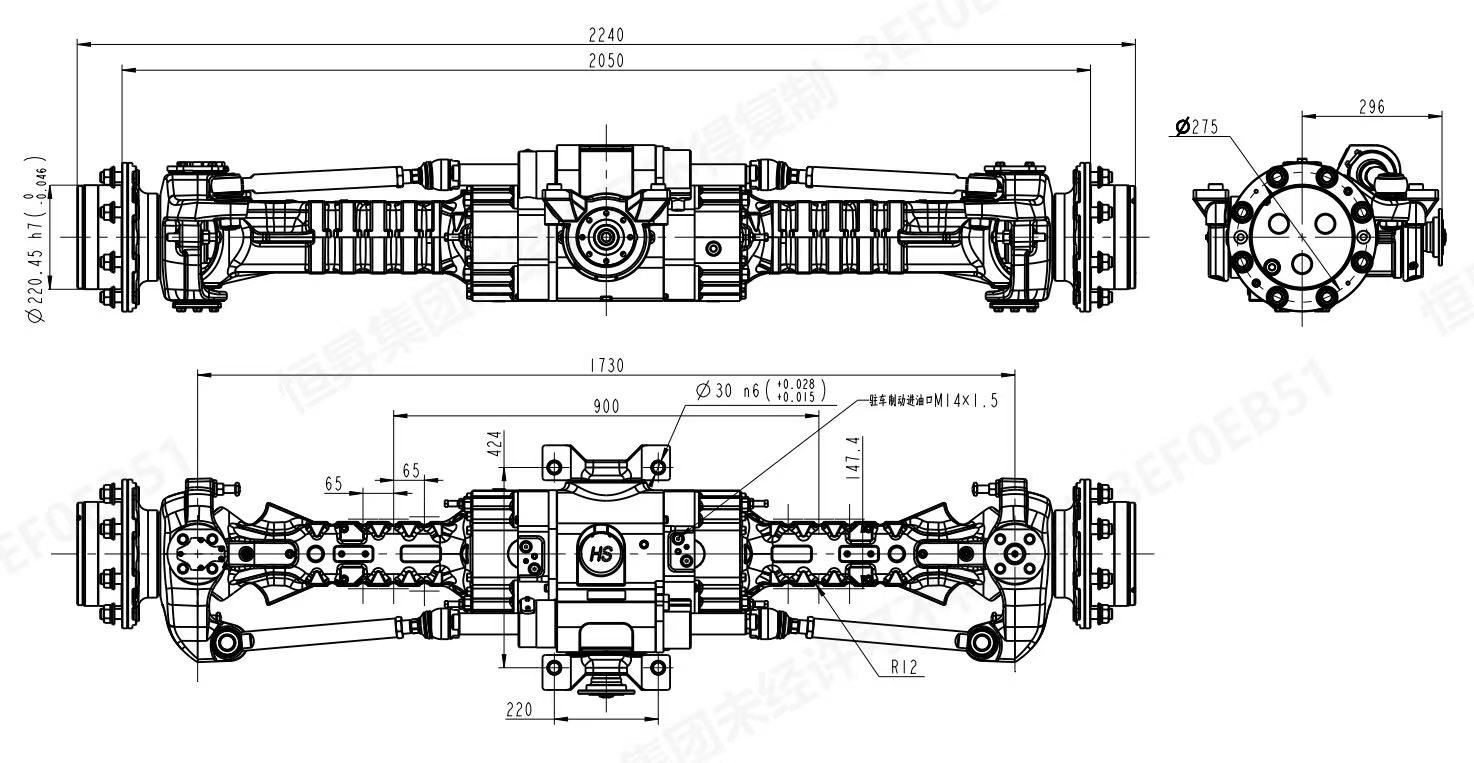

13G rear drive bridge product configuration parameters
Project Parameter
Bridge type 13F
Basic structural form Segmented casting structure
Rated load (kg) 13000
Driving control torque (Nm) 31000
Parking brake torque (Nm) 16000
Length (mm) 1600
Rim installation distance (mm) 1322
Installation plate spacing (mm) 710
Transmission speed ratio 16.5
Output torque 16,000NM
Round diameter of rim bolt (mm) Ø335
Rim bolt 20XM22X1.5
Brake interface M14X1.5

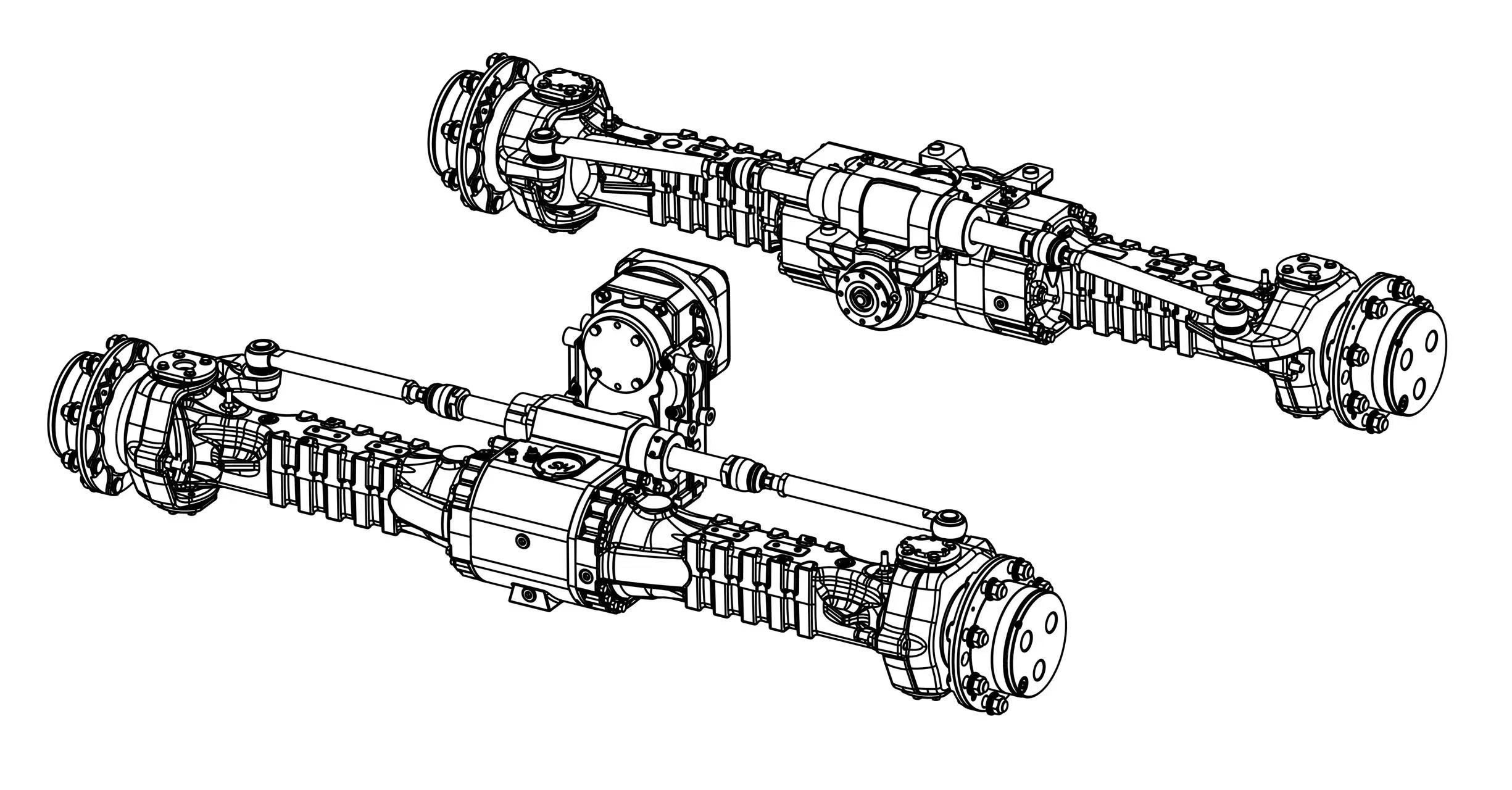

Three-dimensional stereoscopic diagram of 13G drive bridge
The 13F bridge is driving. The bridge body is cast in sections and has a relatively large cross-section and strong rigidity. It is equipped with a parking-integrated wet brake. It can be configured with an explosion-proof motor to meet the explosion-proof requirements of underground operating vehicles, and has high safety and reliability. The whole bridge section is more suitable for underground roadway construction and auxiliary transport vehicles. Use oil gas or cylinder suspension to improve vehicle comfort.
