13G rear drive bridge product configuration parameters
Project Parameter
Bridge type 16B
Basic structural form Hot-rolled pipe welded bridge shell
Rated load (kg) 16000
Clamp disc brak torque (Nm) 18000
Length (mm) 1584
Rim installation distance (mm) 1322
Installation plate spacing (mm) 710
Round diameter of rim bolt (mm) Ø335
Rim bolt 20XM22X1.5
Brake interface M12X1.5

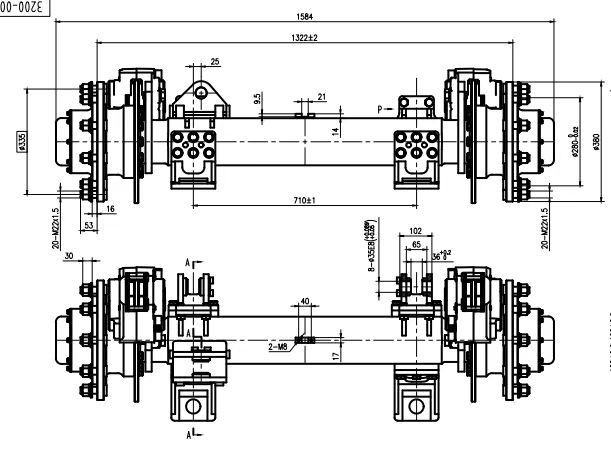

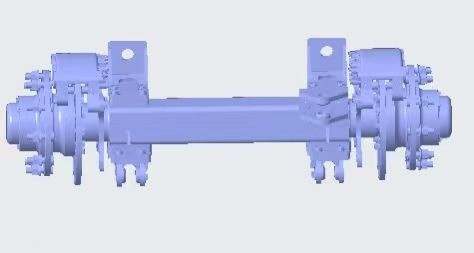

Three-dimensional stereoscopic drawing of 16B drive bridge
The 16B bridge is an accompanying bridge, and the bridge shell is welded by hot-rolled tube. The result is compact and rigid, and it is equipped with a stationed integrated clamp brake. And 13G can form a front and rear axle, with high safety and reliability. Use oil gas or cylinder suspension to improve vehicle comfort. The whole bridge section is suitable for subway and tunnel project transportation cement pipe sheet vehicles and other auxiliary transportation vehicles.
